Insulation Resistance Tester Meter Tool HD HDT20A Meg ohmmeter Voltmeter 1000V w/ LCD Back light Testing Tools Sale - 4D's T&D Inc

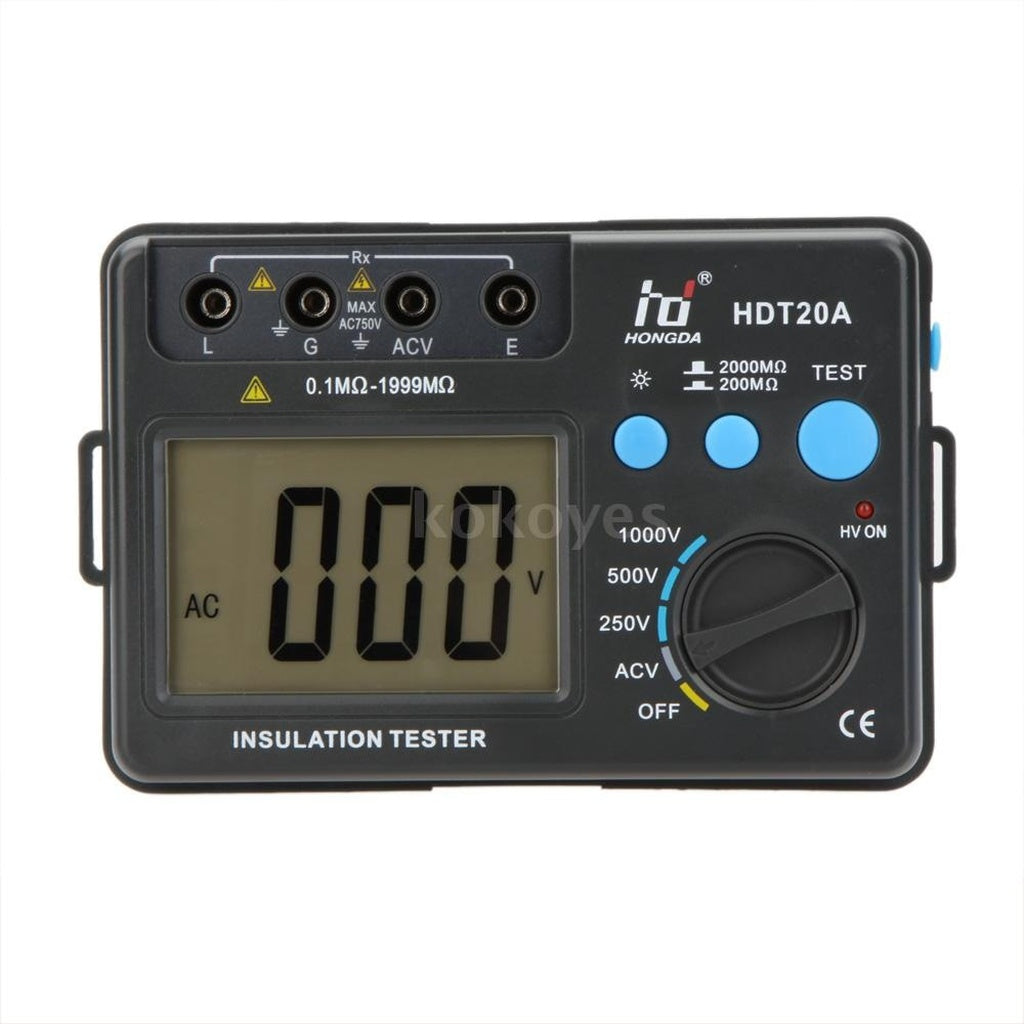

Insulation Resistance Tester Meter Tool HD HDT20A Meg ohmmeter Voltmeter 1000V w/ LCD Back light Testing Tools Sale

4D'S T&D Inc

$80.00 $70.00 Sale

Features:

  • High Voltage Indication: √
  • 3 1/2 digital display, with a max. reading of 1999
  • An accurate, reliable and easy-to-use insulation tester
  • Large LCD display, easy to read

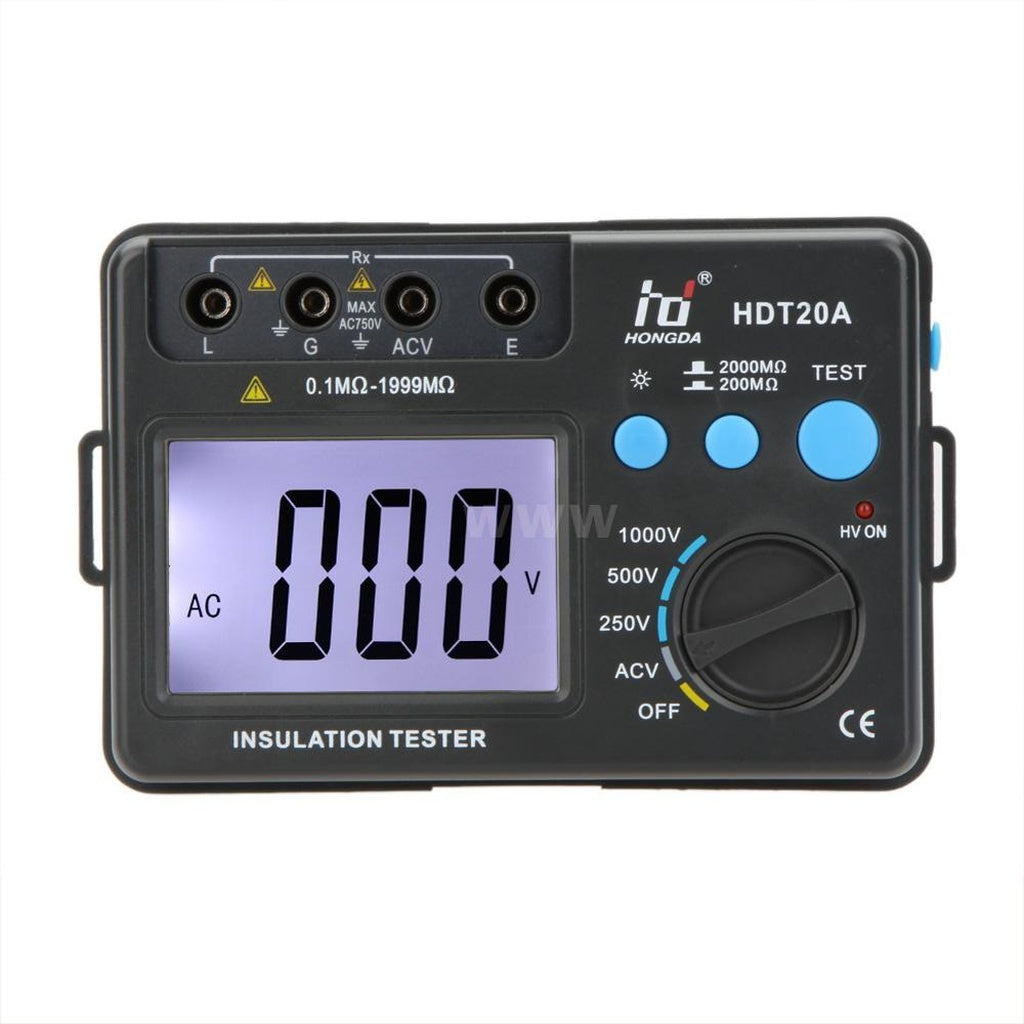

  • LCD Backlight: √
  • Low Battery Indication: √

Basic Function:

  • Test Voltage: 250V/500V/1000V
  • Resistance Range: 0.1MΩ—1999MΩ
  • Min Resolution: 1 MΩ
  • Accuracy: ±10%
  • Short-Circuit Current: >1.0mA
  • AC Voltage: 1-750V
  • Output Load: ≥1000MΩ(90%~110%)
  • Insulation Resistance: ≥500 MΩ
  • Withstand Voltage: AC 2KV 50Hz 1min


Specifications:

  • Insulation Resistance(Ω): Test Voltage:250V/500V/1000V
  • Output Current: 250V(R=250kΩ) 1mA; 500V(R=500kΩ) 1mA; 1000V(R=1MΩ) 1mA
  • 200MΩ 250V: 0.1-20MΩ; 500V:0.1-50MΩ; 1000V: 0.1-100MΩ ±4%
  • 2000MΩ 250V: 20-500MΩ; 500V:50-1000MΩ; 1000V: 100-2000MΩ ±4%
  • Short Circuit Current: ≤1.8mA
  • AC Voltage: 750V ±1%+6

General Characteristic:

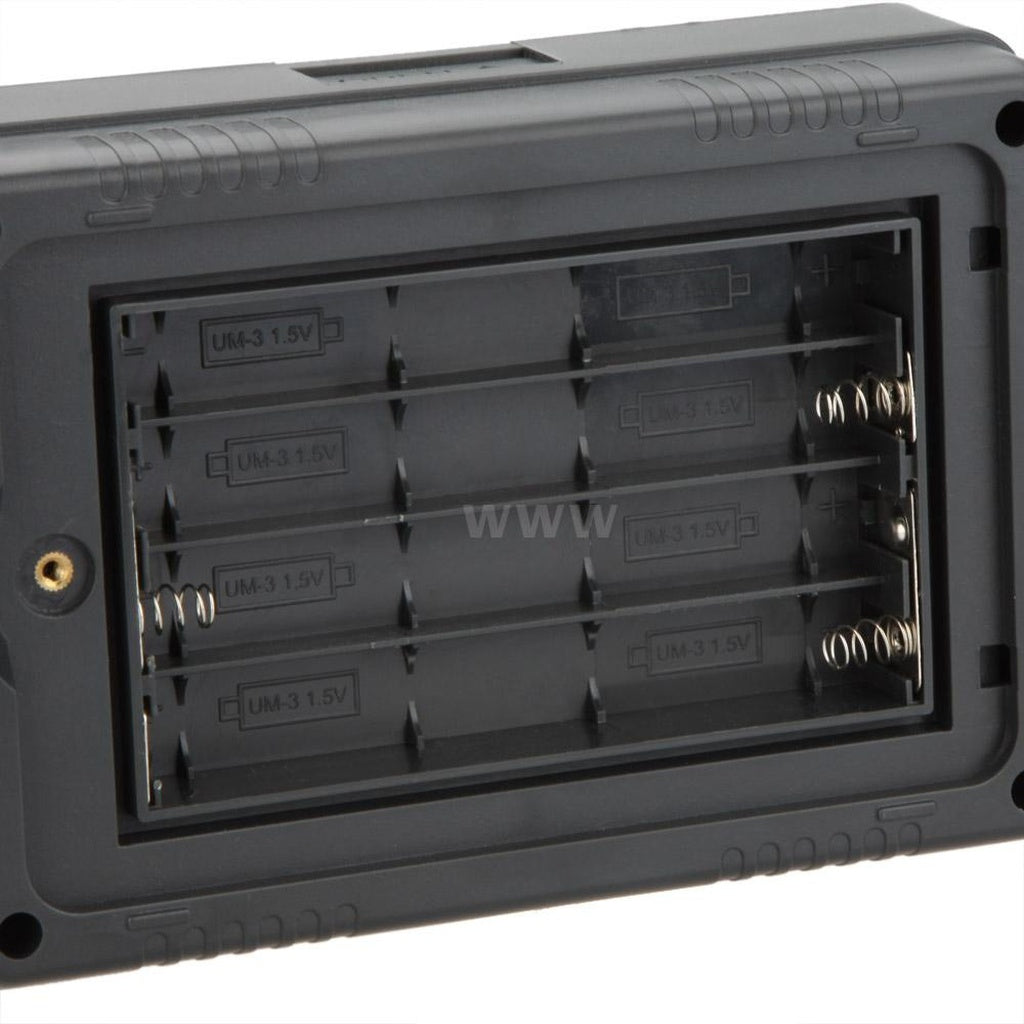

  • Power: 6 X 1.5V AA Batteries (not included)
  • LCD Size: 55 X 35mm
  • Product Net Weight: 500g
  • Product Size: 175 X 115 X 55mm
  • Product Color: Grey
  • Package Size: 18.5 X 16 X 7cm / 7.4 X 6.3 X 2.1in
  • Package Weight: 653g / 1.4lb

Package List:

  • 1 * HD HDT20A Insulation Rseistance Tester
  • 1 * Pair Test Lead
  • 1 * Pair Alligator Clip
  • 1 * English Manual
