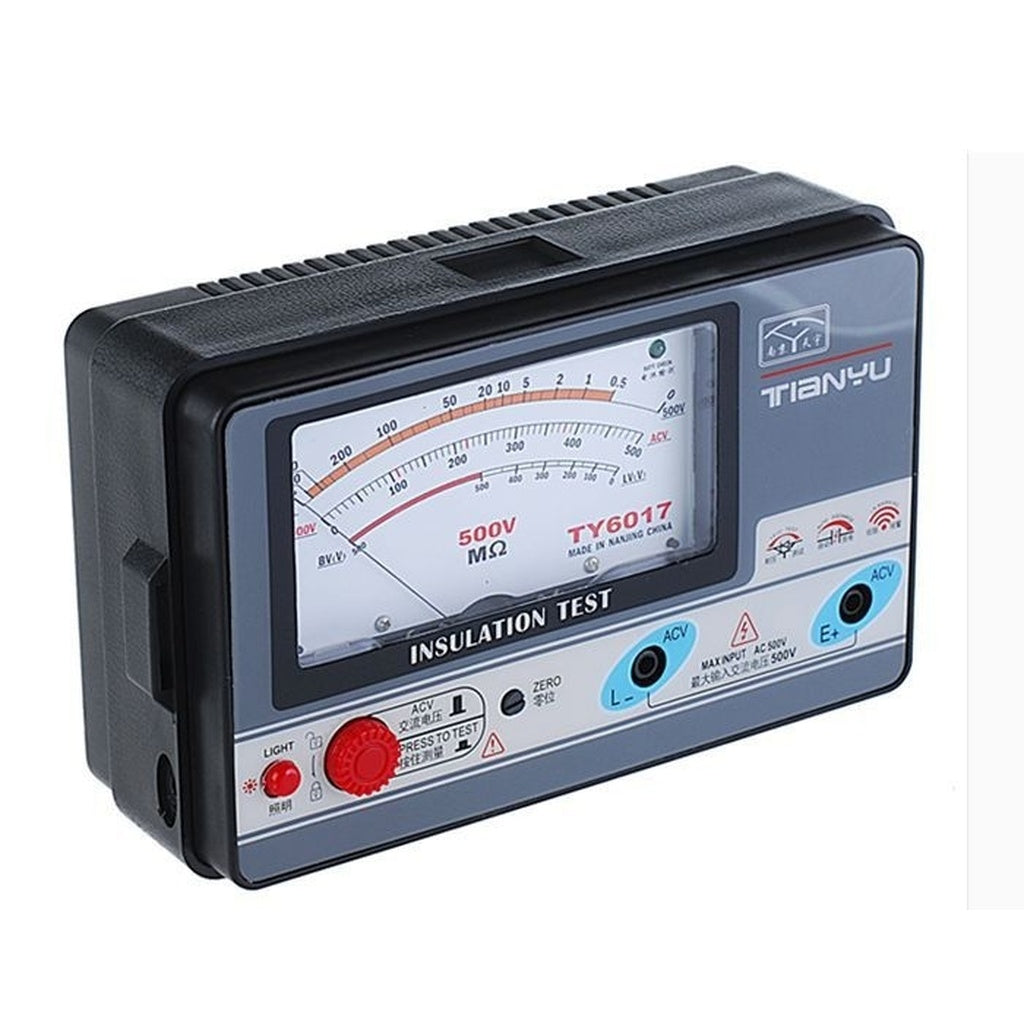

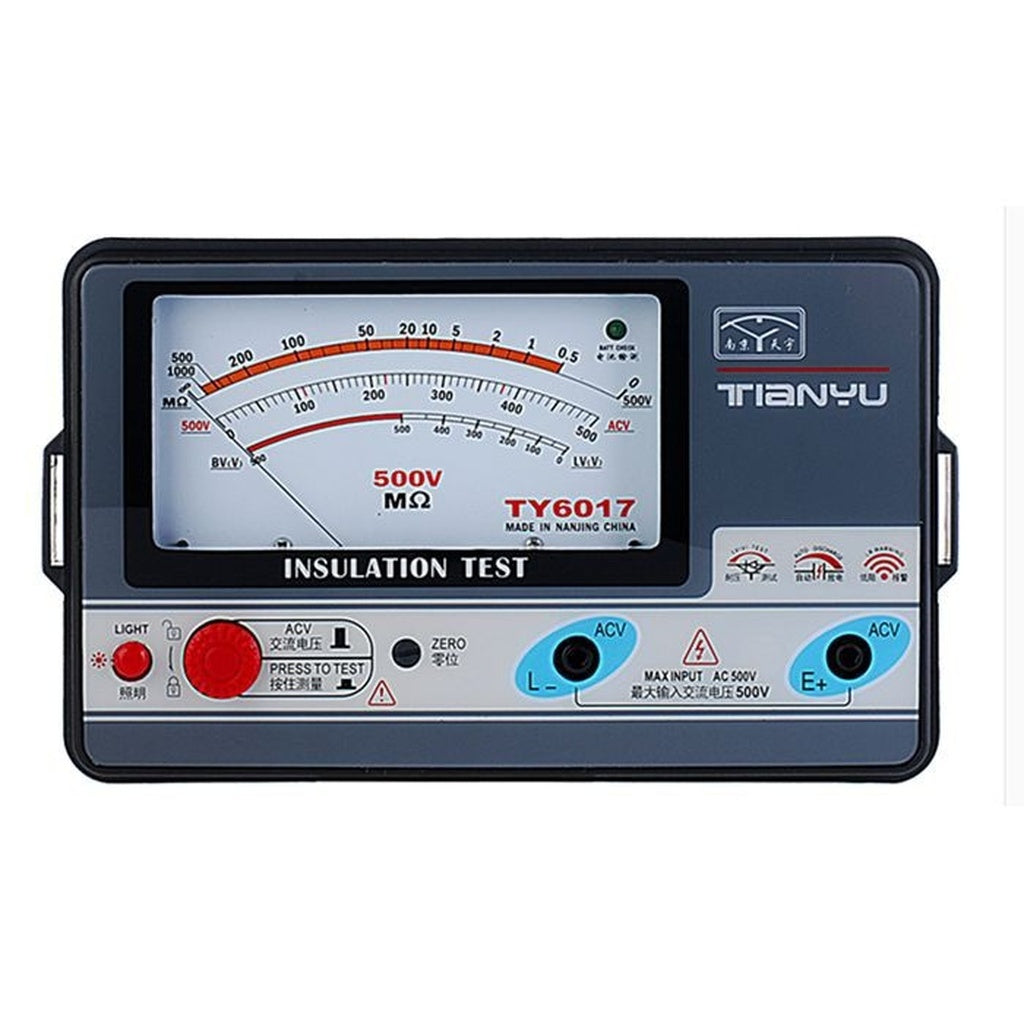

TY6017 500V insulation resistance meter analog tools INSULATION TESTER 0.5-1000M
4D'S T&D Inc.
Regular price$88.00
$98.00
Sale
FEATURES:

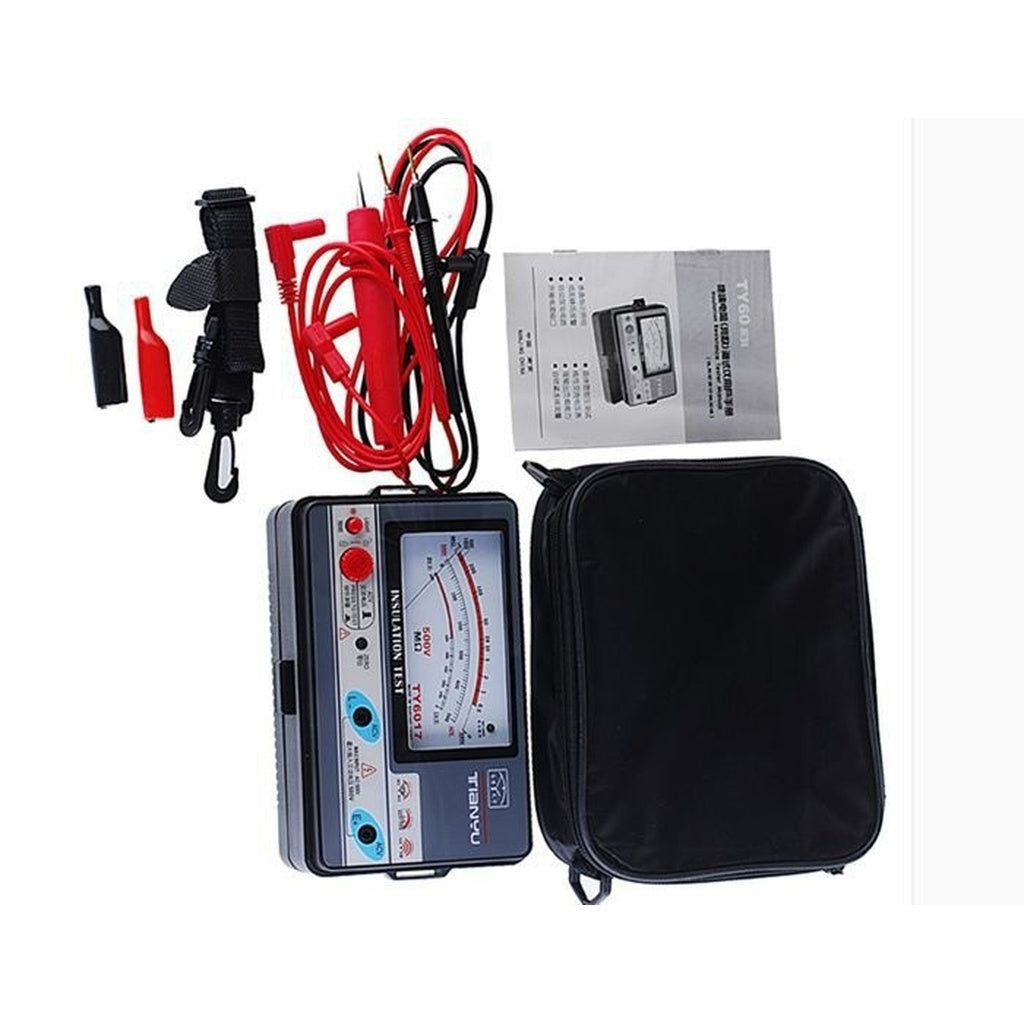

TY60 series of electronic pointer insulation resistance (megger shake table) tester combines the simple operation of traditional megger shake table intuitive and advantages of digital megger, with a number of patented technology, exclusive patent SFB header, use rare earth materials, seismic drop resistance with portable backpack, easy to use.
Dial lighting instructions
Transistors pressure test
Low resistance buzzer alarm
Linear AC voltmeter
Automatic discharge circuit
Strong output load capacity
SEPCIFICATIONS:
Rated operating voltage: 500V
ACV Measuring range: 0-500V
Output voltage: Nominal test voltage 90% -110%
ACV accuracy: ± 5% full scale arc
Output short circuit voltage: 500 A

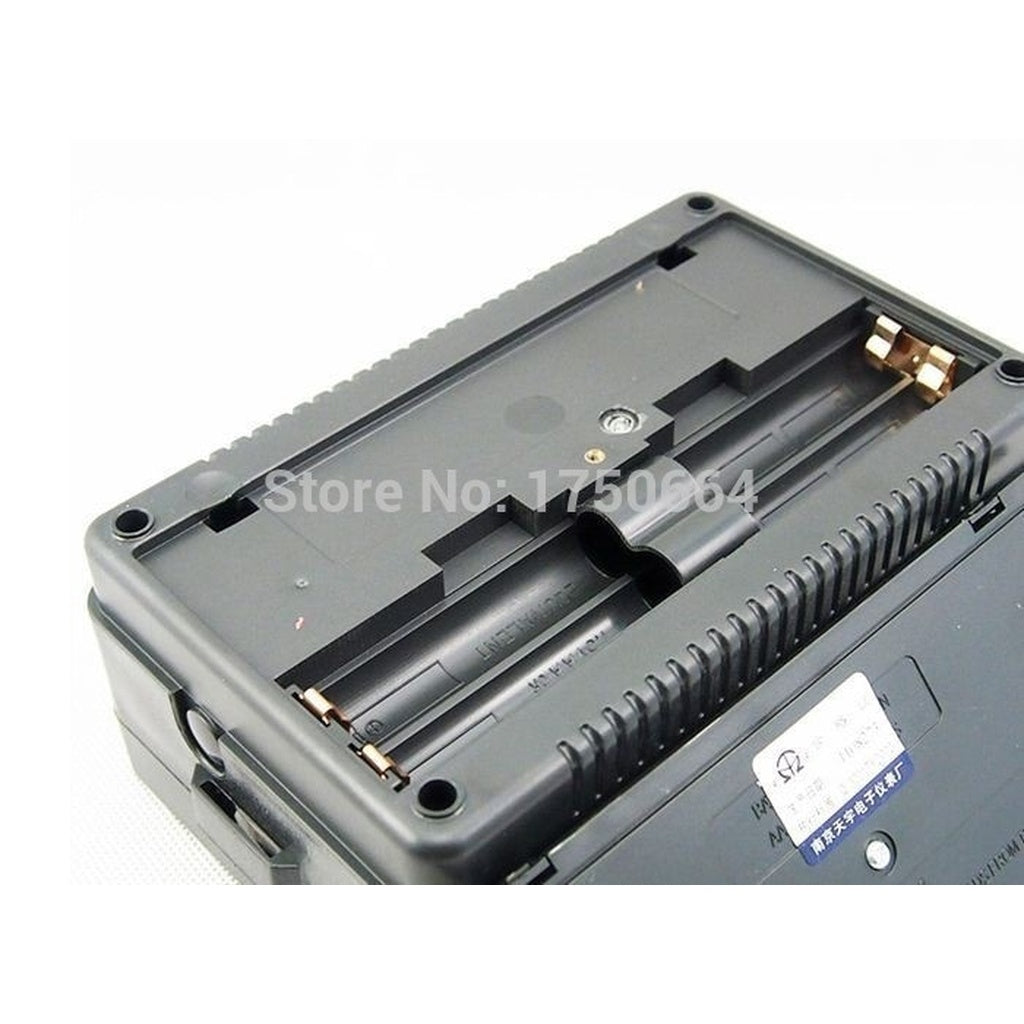

Power: R6AA 5 # battery 6
Measuring range: 0.5-1000M
Measurement Accuracy: 5-1000M ± 5% arc
Pressure: ACV movement between circuit and case 4000V / min
Pressure measurement: 500V / 0.5mA
Insulation: 50M movement between the circuit and the chassis
