Electric Solenoid Valve 1/2

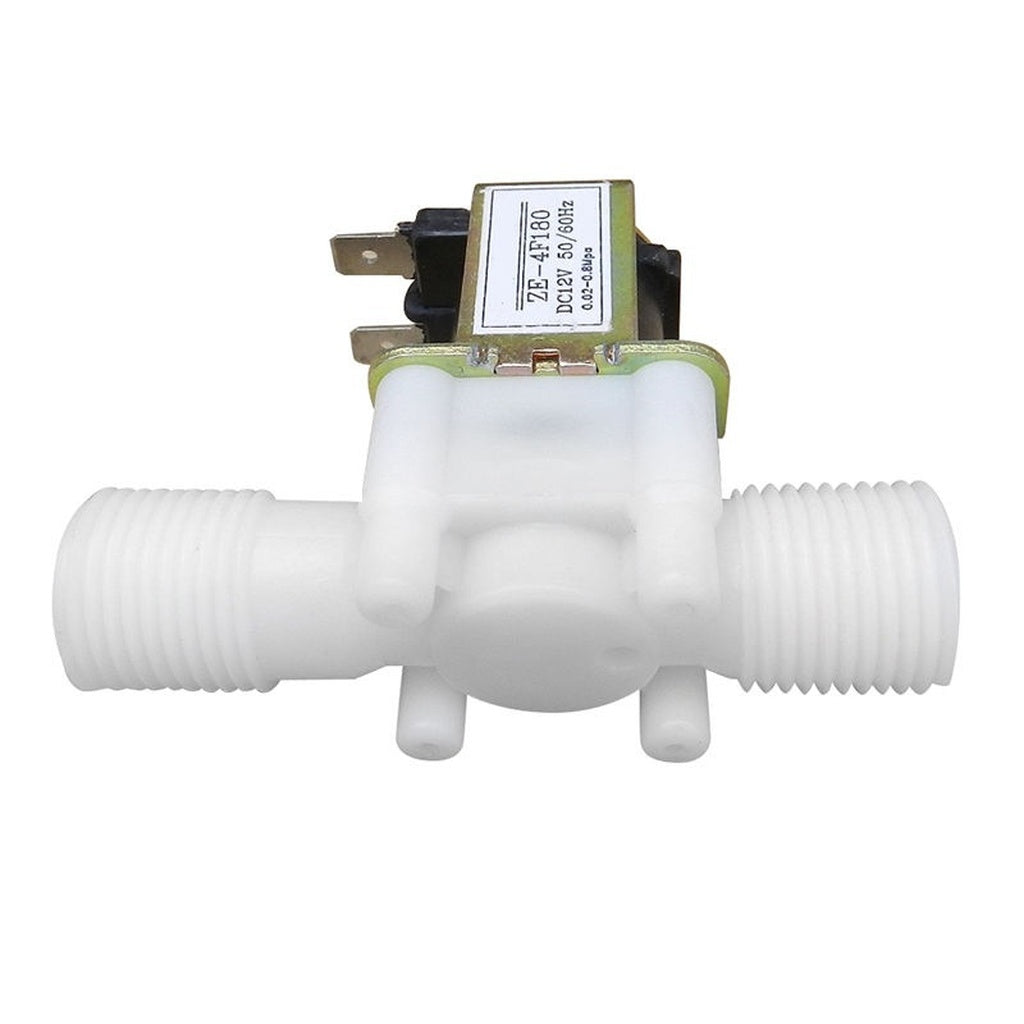

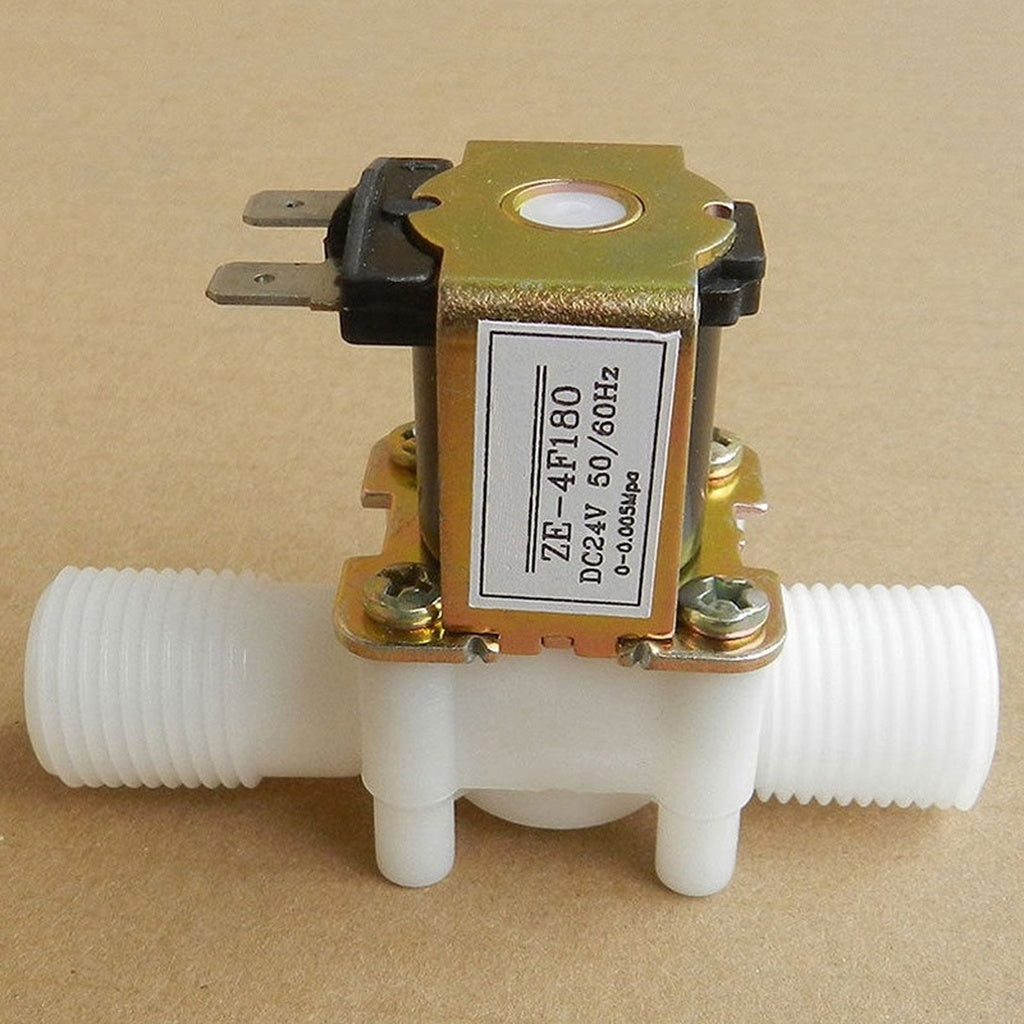

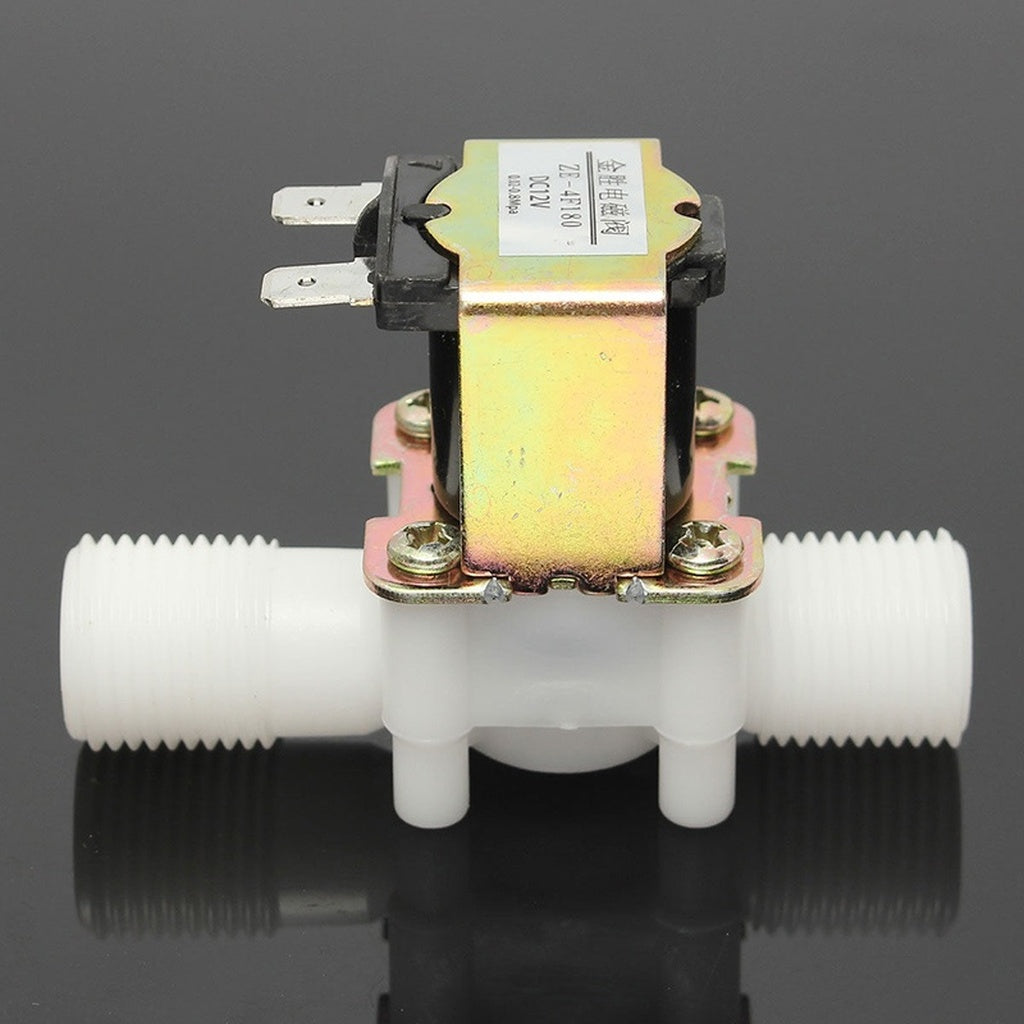

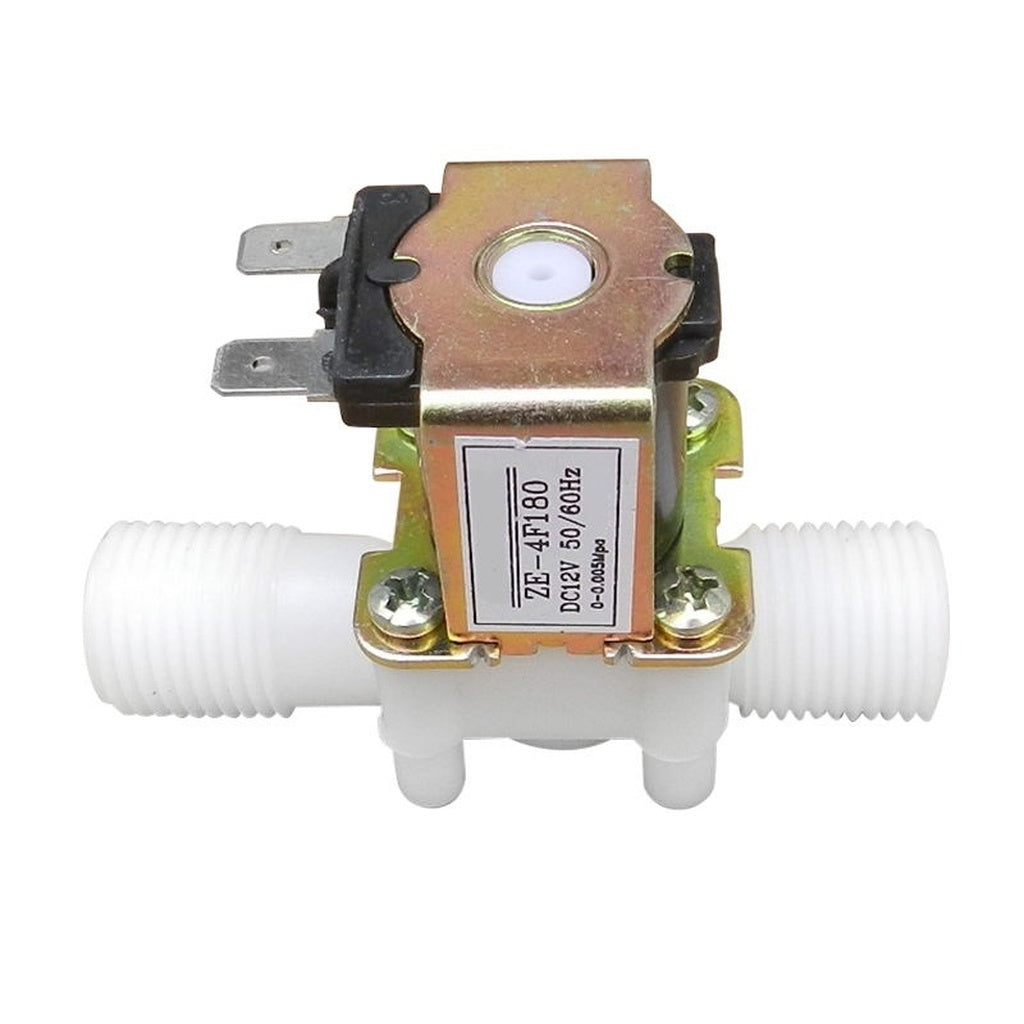

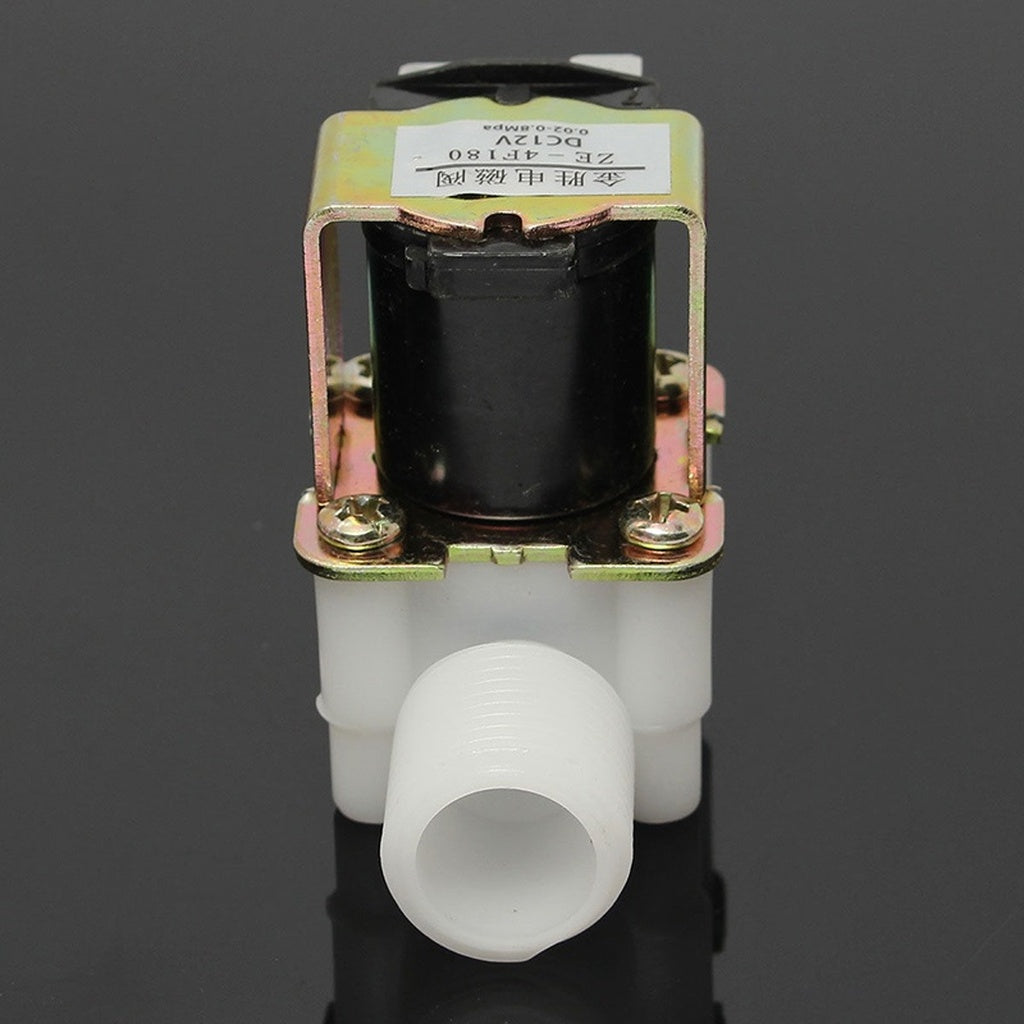

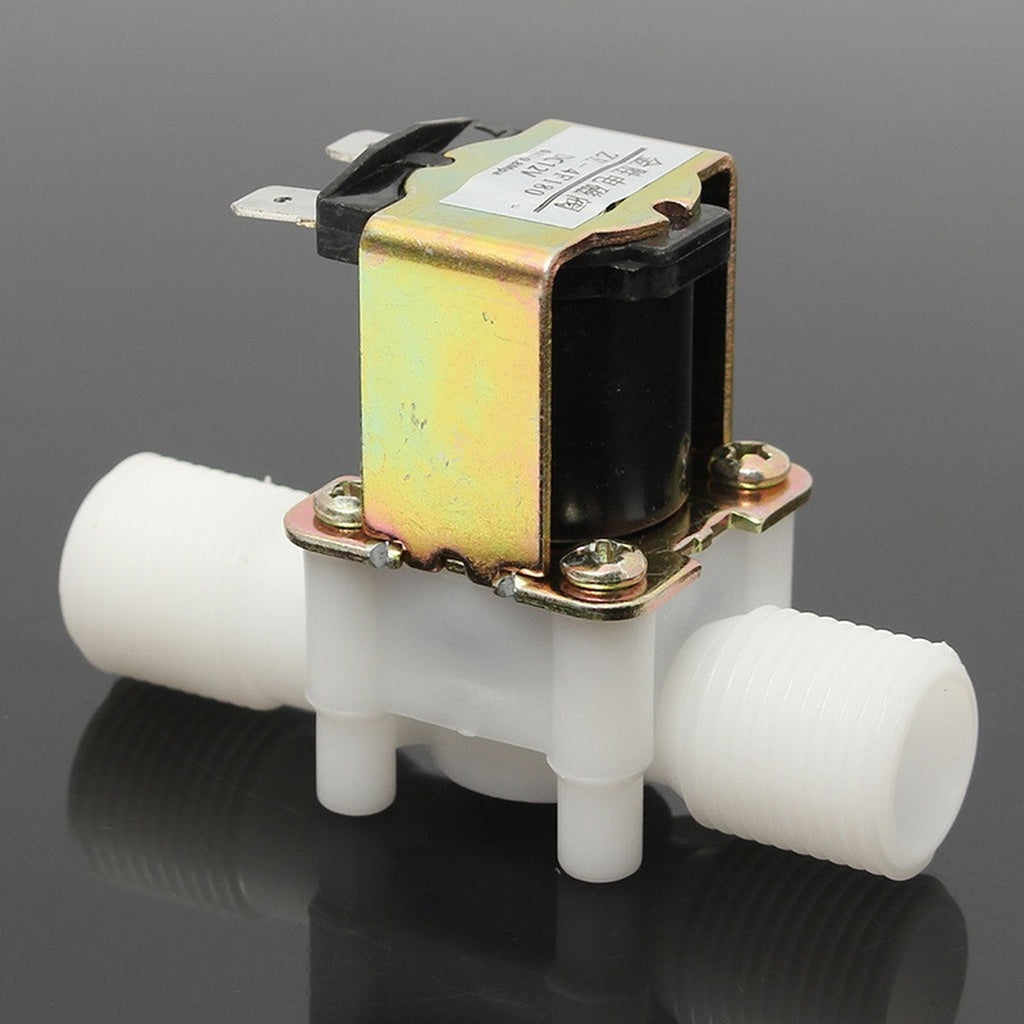

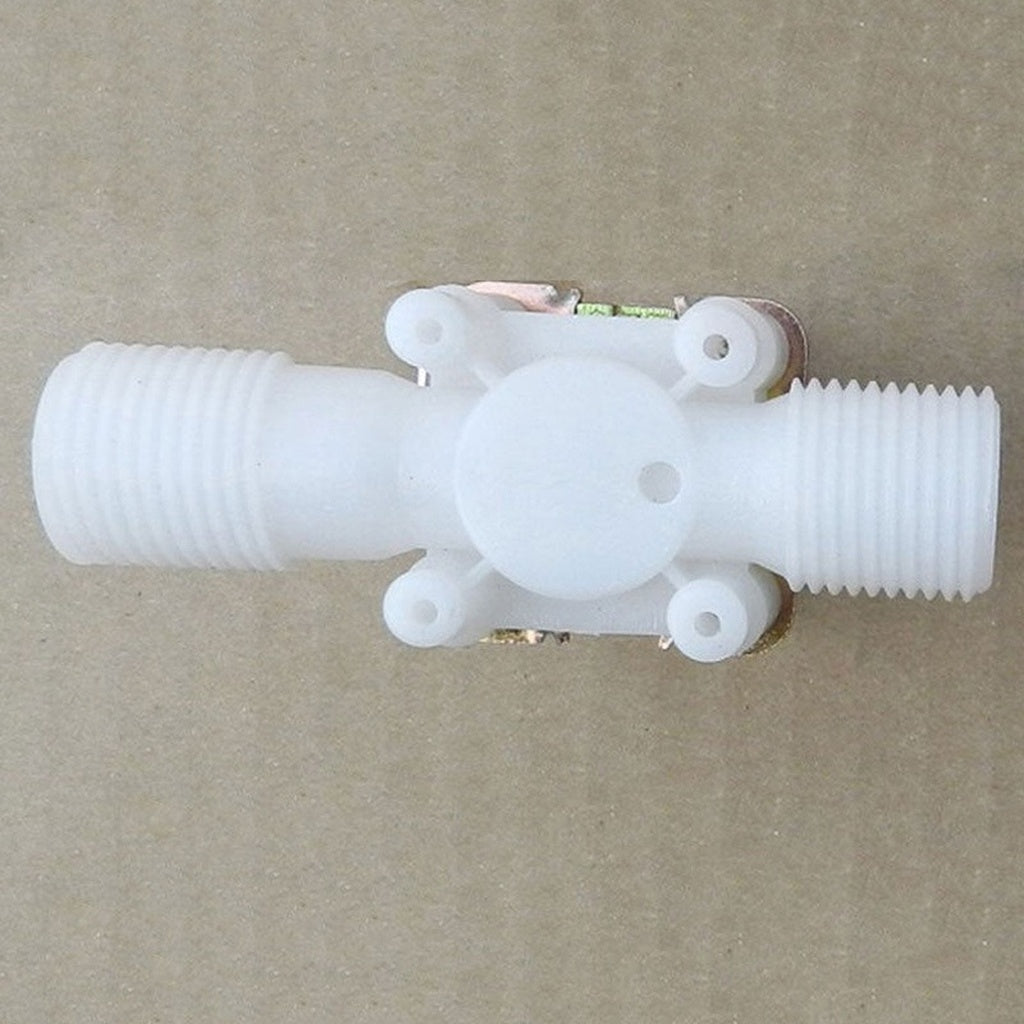

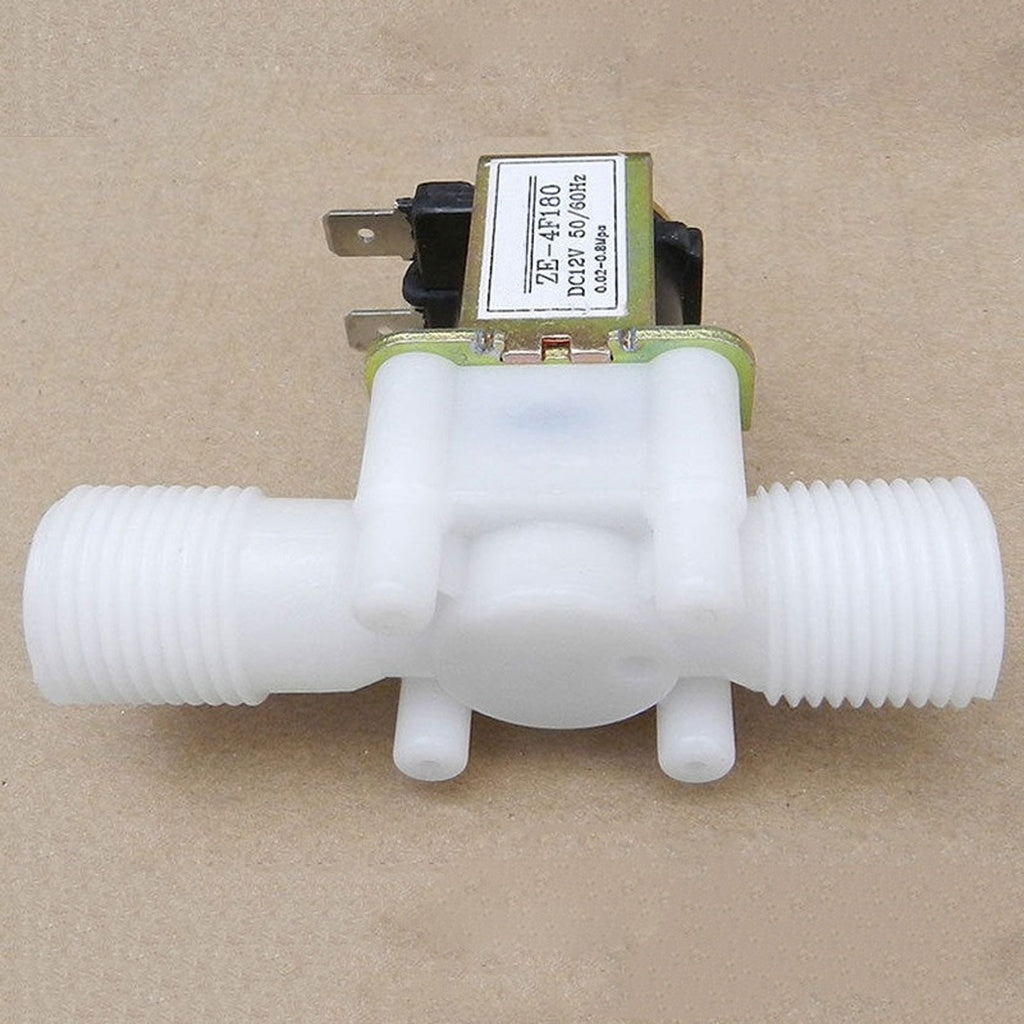

Electric Solenoid Valve 1/2" NC 12Vdc Magnetic Plastic Water Valve Air Control Switch Normally Close

4D's T&D Inc

Regular price $12.00 $19.00 Sale

This 12 volt dc solenoid valve (sometimes referred to as water valve) can be used to control the flow of water and low viscosity fluids such as oils, etc. Good for uses on your trailers, mobile homes and boat, etc.

Description:

100% brand new and high quality

Specification:
Material: Metal + plastic
Screw diameter: Approx. 20mm

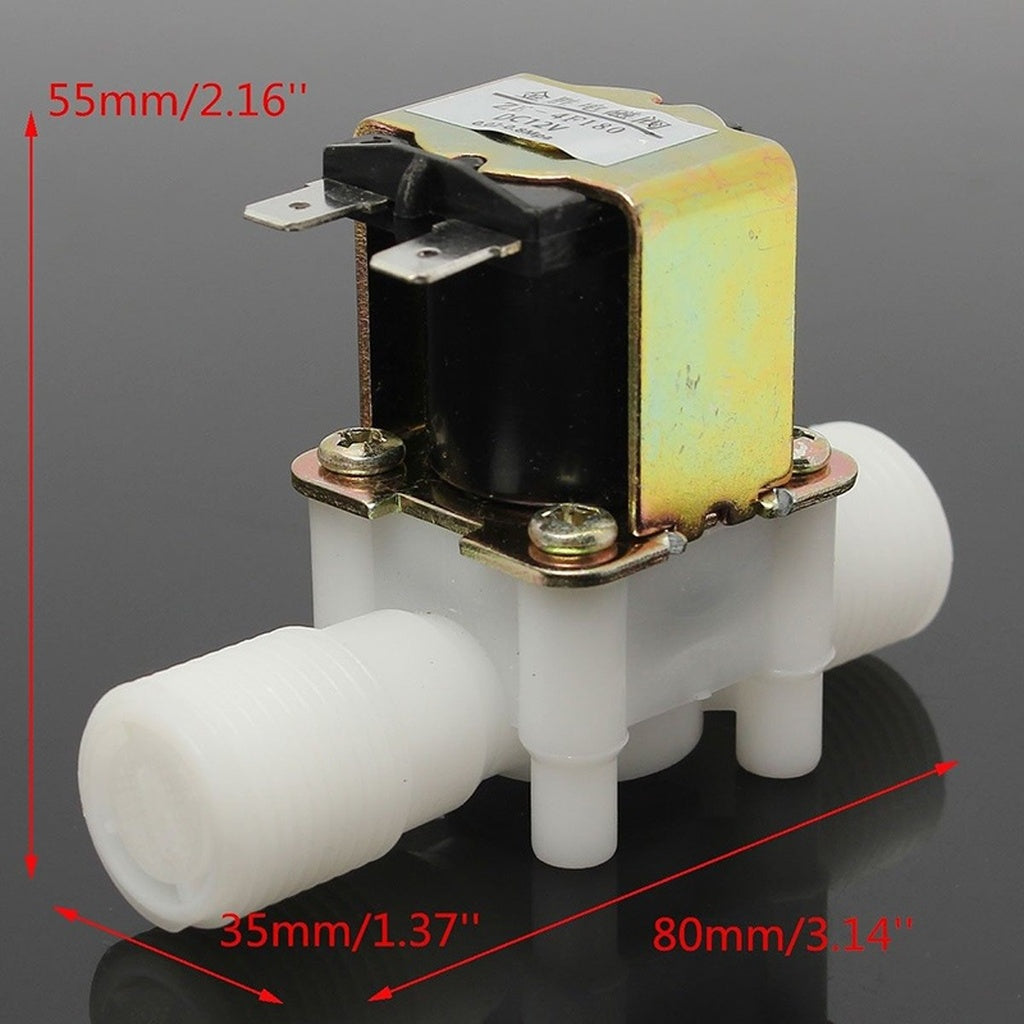

Size: Approx. 84 x 57mm (L x H)
Coil size: Approx. 34 x 23mm (W x H)
Voltage: DC 12V
Power: 8W
Inlet and outlet: Hose barbs for 1/2" (outer diameter) hose
Pressure: 0.02- 0.8Mpa
Max fluid temperature: 100°C
Operation mode: Normally closed
Valve type: Diaphragm (operated by Servo)
Usage: Water and low viscosity fluids

Main technical indicators and precautions:
1. Low-pressure solenoid valve inlet valve used in environmental conditions
2. Altitude not exceeding 2500 meters
3. Ambient temperature is 0-40 ° C
4. Air relative humidity below 95% (temperature 25 ° C)
5. Type and rated technical parameters
6. Type:Ddirectional (one-way) solenoid valve (also known as no filler-type pilot valve action or solenoid valve)
7. Rated voltage: DC12V
8. Rated current: 12V-300MA
9. Work: short-term quota system (that is, intermittent cycle system)
10. Insulation class: Class E insulation
11. Use fluid: (0-55 ° C) water
12. Use water pressure: 0.02-0.8Mpa.

13. Style: Convenient and practical
14. Color: As the picture shows

Package included:
1 x Electric solenoid valve x 12vdc.
