PICK-A-DEAL(TM)!
DEAL - BUY TWO PIECES AND GET ONE FOR HALF PRICE.
[Supply is limited. (1pcs $80.00) 2pcs = 125.00]
Contact capacity of output: 250V AC 3A (resistive load)
Setting value (SV): identical to measuring range (PV)
Proportional band (P): 0~full range (ON/OFF control when set to 0)
Integral time (I): 0~3600 sec (No integral action when set to 0)
Derivative time (D): 0~3600 sec (No derivative action when set to 0)
Features:
Measuring accuracy: +/- 0.5%FS
Cold-end compensation tolerance:+/- 2℃（can be modified by software in 0~50℃）
Resolution: 14 bit
Sampling cycle: 0.5 Sec
Dimensions: 48 x 48 x 110 (mm) +/- 0.2mm

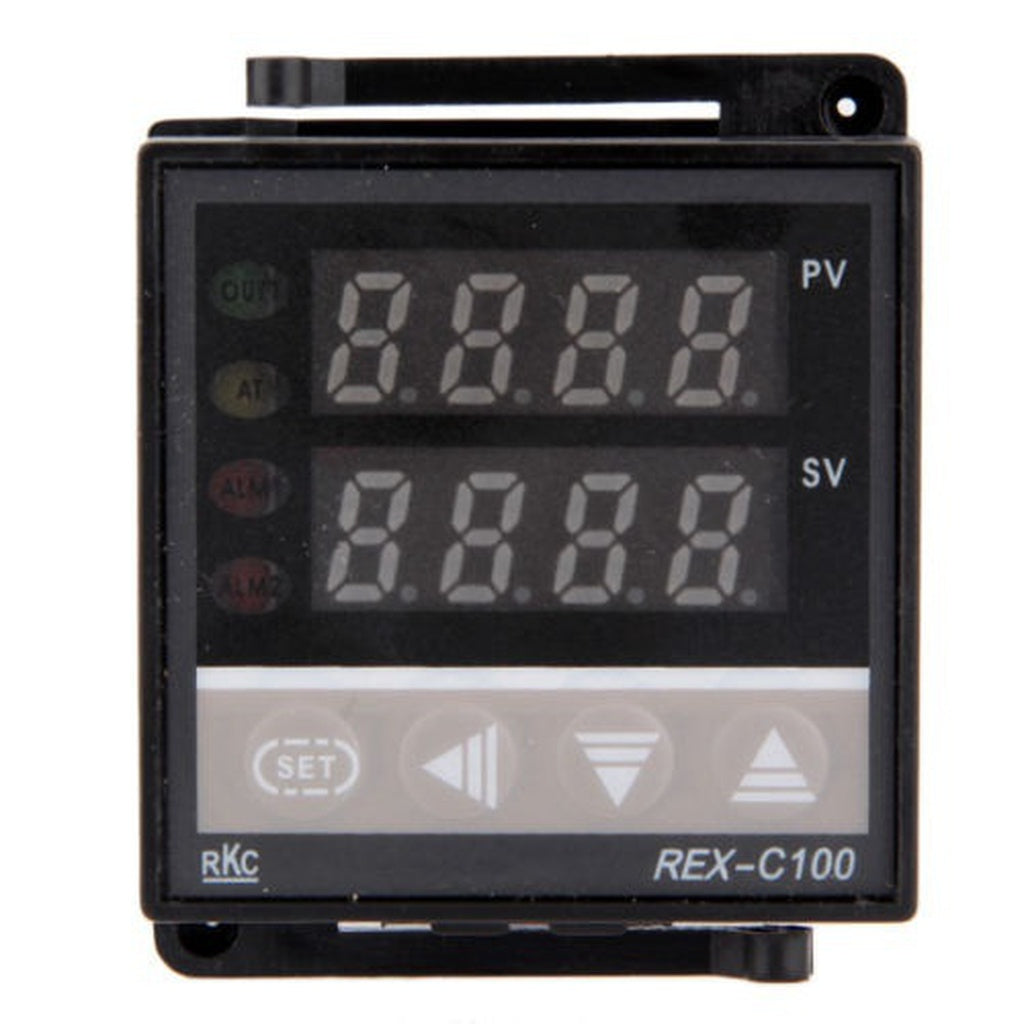

Process value (PV), Setting value (SV)
Output, alarm and self-tuning can be indicated by: LED
PIN control (including ON/OFF, step-type PID and continuous PID)
Self-tuning control
Relay output: Contact capacity 250 VAC 3A (resistive load)
Alarm function output: 1 way
Heat-reset proportional cycle: 1~100 sec
Detective temperature range: 0 to 400℃
Insulation resistance: >50M ohm(500V DC)
Insulation resistance: 1500V AC/min
Power Consumption: 10 VA
Service environment: 0~50℃.
Environment with no corrosive gas 30~85% RH
Please be assured that you are familiar with this product before you buy, because the manual we offer is Chinese. However, There is a label written in English on unit.

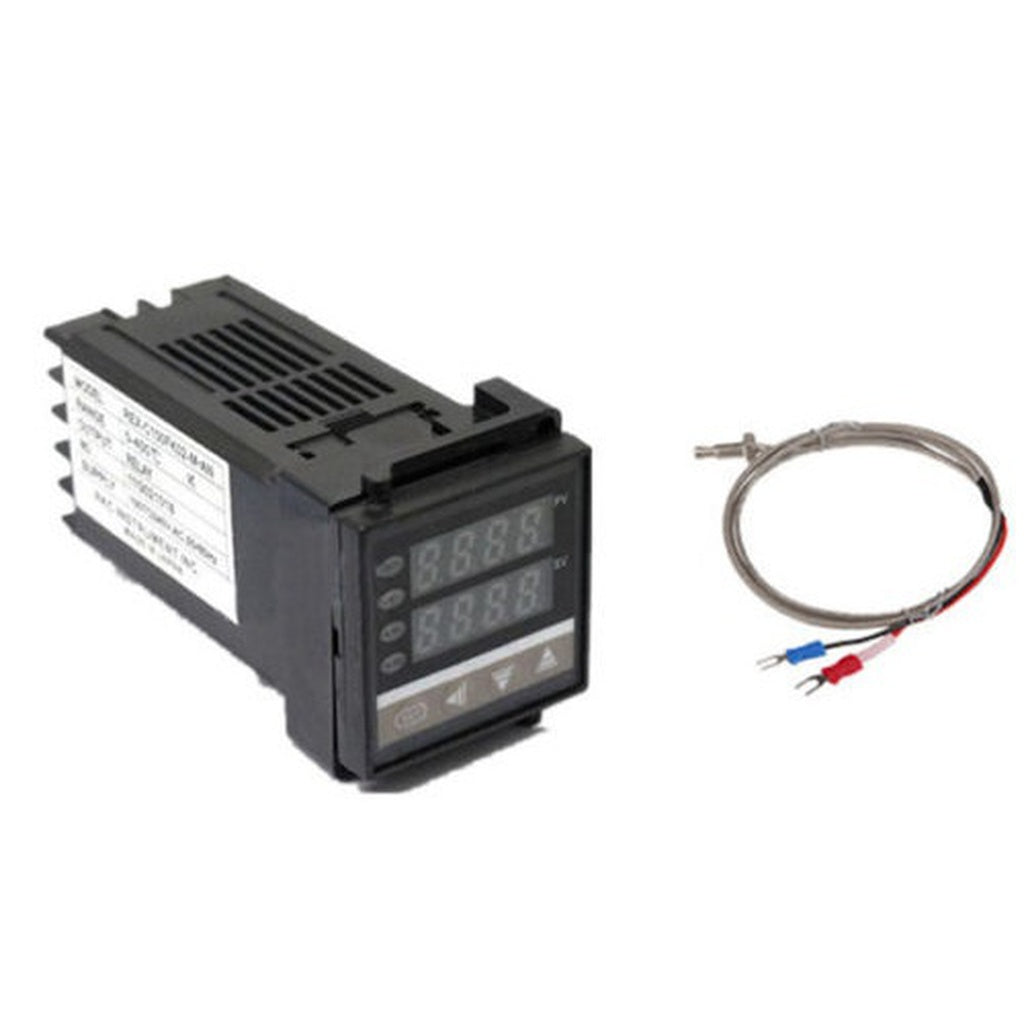

Package Includes:

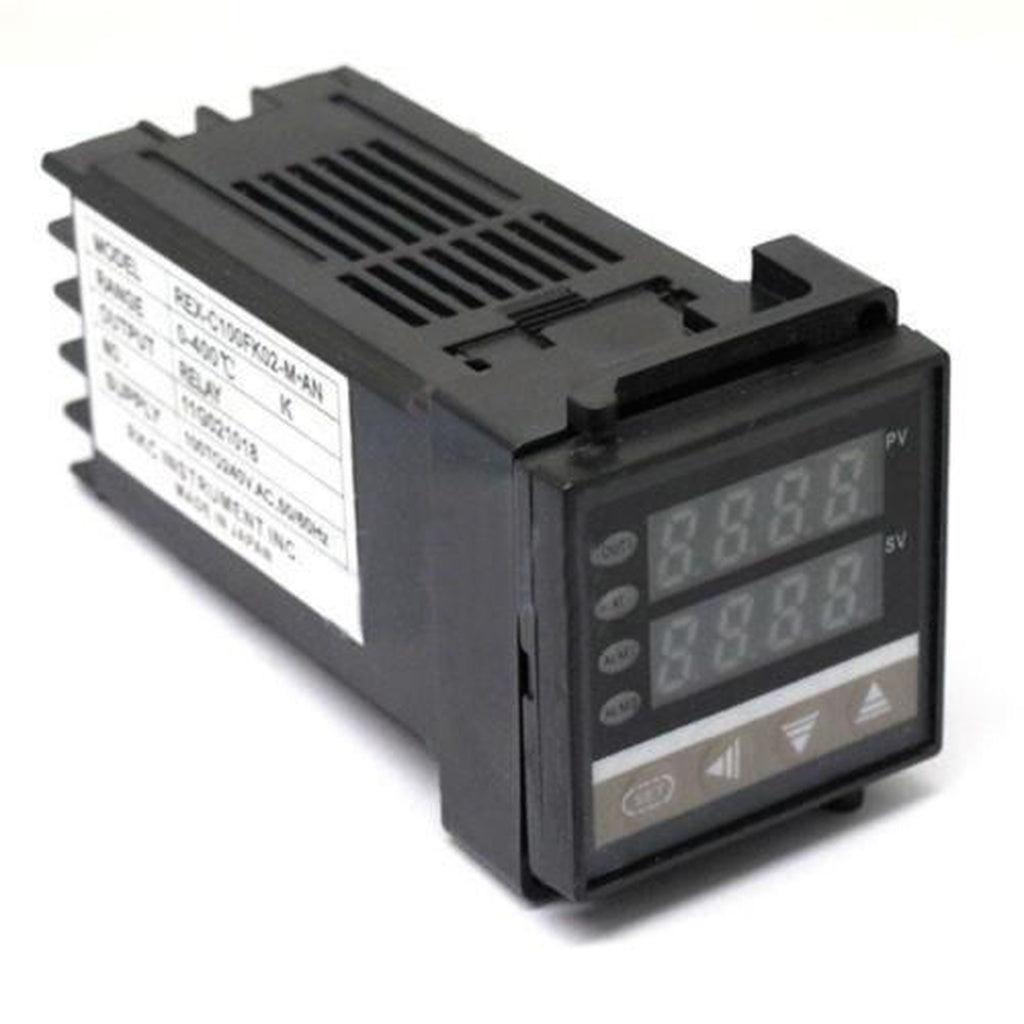

2 x Rex-c100fk02-m-an PID Digital Temperature Control Controller
2 x K Type Probe Sensor.
[One piece is also available. Search this site for 'one set'].
K Thermocouple Digital PID 0 to 400 Celsius Temperature Control Dual LED REX-C100 K Thermocouple Probe
