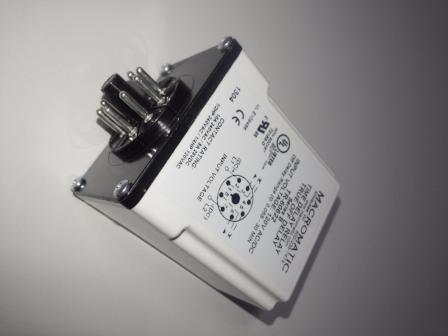

TIMERS - TIME DELAY RELAY (TDR) - True Off Delay TR-60622. Part # 4DS-522TR-B. - $45.90

4D's T&D Inc

Regular price $45.90 Sale

TIME DELAY RELAY /TIMERS - True Off Delay TR-60622:

Input Voltage - 120V Ac/Dc ~ Contact ratings: 10A at 240Vac / 8A at 28Vdc; 1/2 HP 240Vac  / 1/4 HP 120 Vac. Select off-delay time ranges (A to H) -:

A=0.5 -5 SEC. B=0.1-10 SEC. C=0.3 -30 SEC. D=0.6 - 60 SEC. E=1.8 -180 SEC.  F=3 - 300 SEC. G=0.1 - 10 MINS. H=0.3 - 30 MINS

Macromatic - Electro mechanical type, DPDT, 8 Pins, Comes with one FREE matching socket base (part # 4DS-169DRS).

 Part # 4DS-522TR-B.  Price $45.90.
